Waterloo line painting
Kitchener Parking Lot Line Painting Pros paints parking lot lines across Waterloo, from Northdale student buildings and the David Johnston Research + Technology Park to the truck courts along Northfield Drive. We have striped lots in Waterloo Region since 2015 and have more than 550 finished jobs behind us.
Line painting in Waterloo is not the same job as in Kitchener. Waterloo's zoning by-law asks for a 2.8 m wide stall instead of Kitchener's 2.6 m, student properties must be finished before the September move-in, and tech campus lots carry EV and visitor stalls that the by-law says must be clearly identified.
Our crews reach most Waterloo sites in 10 to 15 minutes from our west Kitchener shop. That short drive lets Waterloo property managers book a same-week touch-up for a plowed-off arrow or a new accessible stall instead of waiting for a free night.
What we paint
Waterloo clients book four services from us more than any others: restriping, accessible stalls, EV and visitor stencils, and warehouse floor lines. The mix follows the city's property types, which lean toward student rentals, office campuses and light industry rather than big-box retail.
Our parking lot line painting and restriping service covers Northdale walk-ups, Uptown condos and the campus lots off Columbia Street. Assigned-parking buildings get stall numbers stencilled at the head of every space.
We paint Type A stalls at Waterloo's 3.7 m zoning width, not the 3.4 m AODA minimum many crews default to, through our AODA accessible parking stall painting. Each stall gets a 1.5 m aisle in high-contrast diagonal hatching.

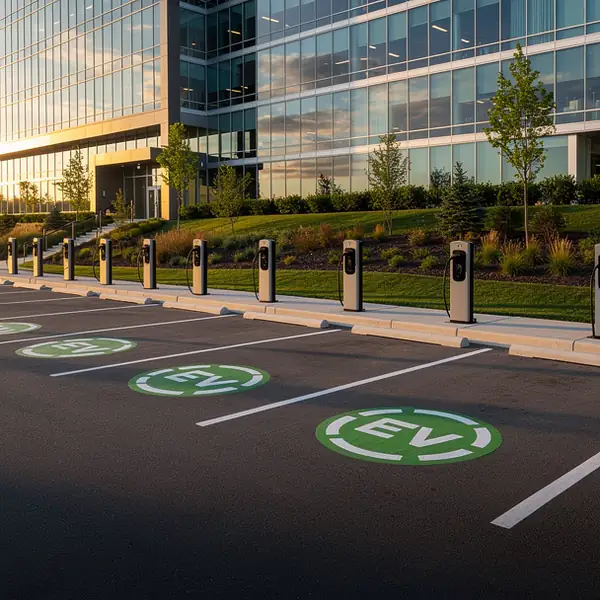

Tech campuses add EV chargers every year, and Waterloo's by-law wants visitor stalls clearly identified. Our parking lot stencils and custom markings cover EV symbols, VISITOR lettering, numbered stalls and rideshare pickup zones.
Light industrial buildings around Northfield Drive and Weber Street North need forklift aisles, pedestrian walkways and racking zones. Our warehouse floor line painting uses two-part epoxy that handles daily lift truck traffic for 3 to 5 years.
Waterloo condo corporations with an outdoor amenity court can have it repainted through our sports court line painting service on the same visit as the garage, so the condo board signs one work order.
By-laws
Parking stalls in Waterloo are governed by Section 6 of the City of Waterloo's Zoning By-law 2018-050, and its sizes are wider than Kitchener's. A 90 degree stall must be at least 2.8 m wide and 5.5 m long, and there is no compact stall size to fall back on.
That matters when a lot is re-laid out. A plan drawn to Kitchener's parking stall dimensions will come up short in Waterloo, so we measure every new layout against the table below before we snap a chalk line.
| Marking | Waterloo minimum | Where it comes from |
|---|---|---|
| 90 degree stall | 2.8 m wide by 5.5 m long | Table 6B, section 6.1.5 |
| 45 degree and tandem stall | 2.8 m wide by 6.0 m long | Table 6B |
| Parallel stall | 2.8 m wide by 6.5 m long | Table 6B |
| Stall beside a wall or column | Add 0.2 m of width for each obstructed side | Section 6.1.5.2 |
| Type A accessible stall | 3.7 m wide by 5.5 m long | Table 6E |
| Type B accessible stall | 2.4 m wide by 5.5 m long | Table 6E |
| Accessible access aisle | 1.5 m wide by 5.5 m long, may be shared | Table 6E, section 6.4.5 |
| Visitor stalls | Clearly identified and signed; garage aisles leading to them marked | Section 6.5.1 |
| EV stalls, surface lots | 1 stall at 20 to 49 spaces, rising to 3% of required parking at 150 or more | Table 6C, section 6.3.1 |
The wall and column rule catches people out in Uptown parking garages. A stall boxed in by columns on both sides needs 3.2 m of width, so a garage restripe that copies the old lines can quietly fall below the by-law.
Waterloo also keeps its own Disabled Parking By-law 2009-106, which sets a 3.9 m by 5.5 m minimum for a designated space. When we add a new accessible stall in Waterloo, we lay it out to the wider figure so it satisfies both by-laws and the AODA Design of Public Spaces standard.
Local experience
Four kinds of Waterloo property make up most of our work in the city. Each has its own wear pattern, its own scheduling window and its own markings.

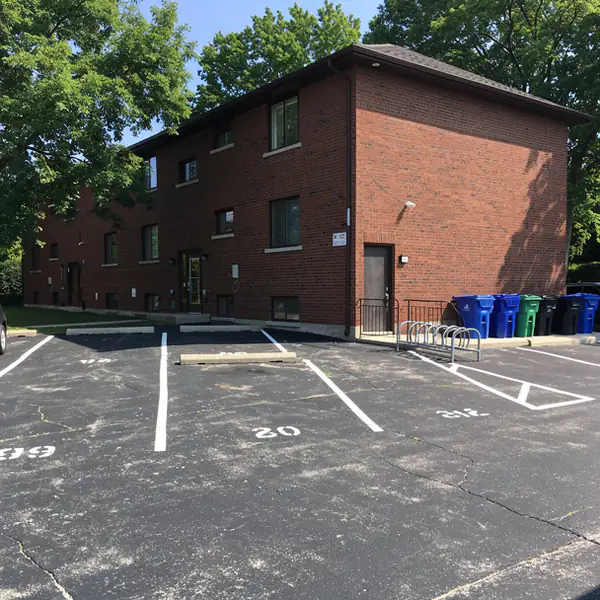

Northdale, the student neighbourhood between the two universities and King Street North, turns over most of its tenants every September. Lots there see heavy wear from short-stay residents, so we restripe them in August with numbered stalls for assigned parking.
Many Northdale lots are small, 10 to 30 stalls behind a walk-up. Each one sits near our $450 minimum, so landlords with several buildings usually book them for the same morning.
The R+T Park sits on the University of Waterloo's North Campus, with about 150 companies and more than 4,000 workers across 120 acres. Its lots need EV stalls, visitor rows and painted walkways from the Research and Technology ION station.
We paint there after 6:00pm, once staff have left, and phase large lots so the evening shift still has parking.

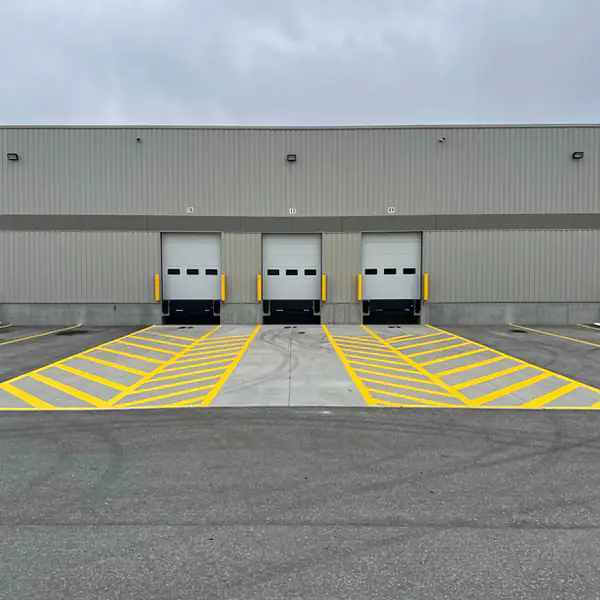

The Northfield Drive corridor near the Conestoga Parkway mixes warehouses, trades and light manufacturing. Typical scope is truck court lines, dock hatching and forklift lanes inside, painted on a weekend or planned shutdown.
The City's 98 acre Generation Park industrial lands in north Waterloo will add new paved yards over the next few years, and new asphalt needs about 30 days to cure before final striping.
Uptown plazas along King Street and the big lots near Conestoga Mall on King Street North stay busy into the night, so we restripe them overnight in phased sections. Arrows and stop bars at the entrances wear out first.
Waterloo has removed minimum parking counts near its ION stations, but every stall a property still builds must meet the Table 6B sizes. Infill lots in Uptown often need a careful re-layout to keep their count at 2.8 m widths.
Scheduling
Student properties in Waterloo should be booked by June for a mid to late August restripe. The two universities bring thousands of residents back over one weekend, and the City closes streets around campus for it, so the lot has to be finished well before then.
August mornings near campus fill first. Send your address or a satellite screenshot in May or June and we hold a date with no re-quoting.
Most leases change hands before move-in, so lots are near empty. Waterborne lines are drivable 30 to 60 minutes after the last pass.
In 2026, University of Waterloo move-in ran September 3 to 6. The City posted no-parking zones on Lester, Bricker, Marshall, Regina and Hickory streets and closed Seagram Drive, so we schedule nothing in Northdale that weekend.
When winter term ends, we touch up plow-scraped stall lines and numbers before the spring and summer tenants arrive.
Typical jobs
These are the three Waterloo jobs we quote most often. Stall counts and timings are typical of what each kind of site needs, and every job ends with a same-day photo report.
A 25 stall lot off Regina Street or Lester Street: numbered stalls, one accessible stall with hatched aisle and a visitor row, painted in a weekday morning.

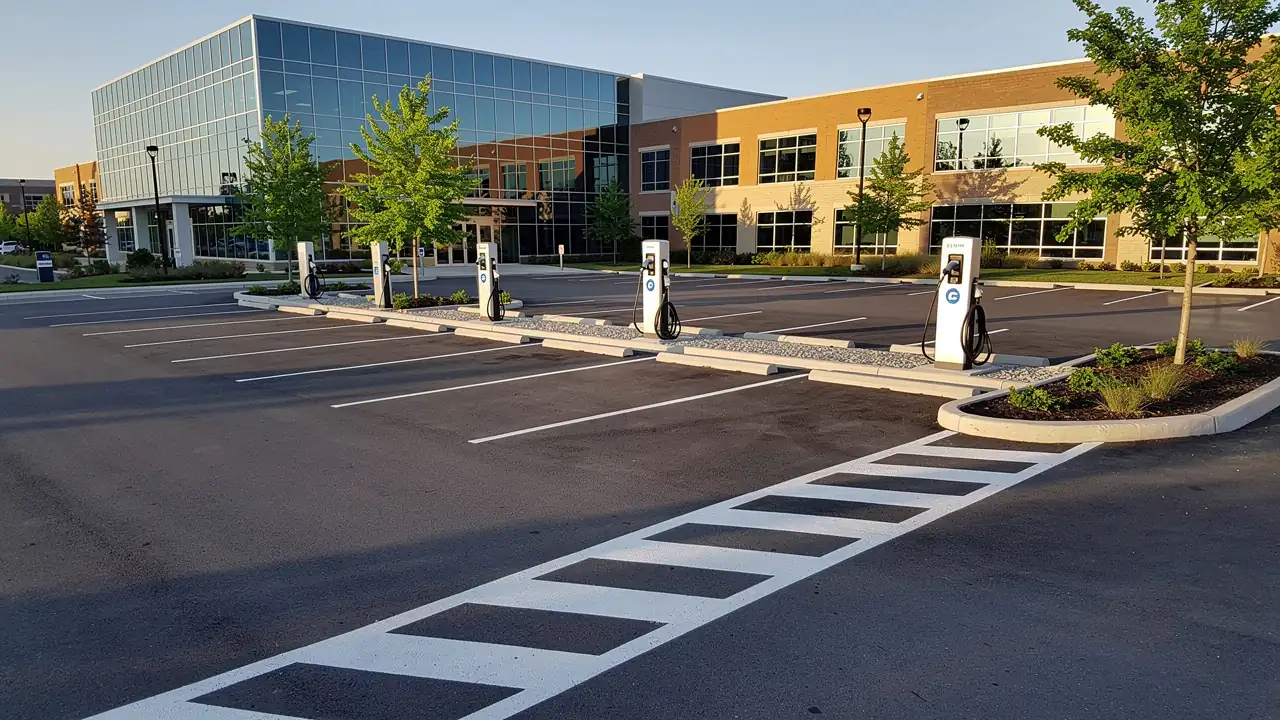

A 150 stall campus lot off Columbia Street or Hagey Boulevard: full restripe, EV stencils, a walkway to the building and stop bars, finished in one night or two phased evenings.
Truck court lines and dock hatching outside, then epoxy forklift lanes and walkways inside, done Saturday and Sunday while the plant is closed.
Getting there
Most Waterloo sites are 10 to 15 minutes from our shop. We head north on Westmount Road for Uptown and the university area, or take the Conestoga Parkway north for Northfield Drive and the R+T Park.
Because the drive is short, we can stack two or three small Waterloo lots into one evening. Same-week touch-ups are normal here between May and October.
FAQ
These are the questions Waterloo property managers, landlords and facility teams ask us most.
No. Waterloo's Zoning By-law 2018-050 sets a 2.8 m by 5.5 m minimum for a 90 degree stall, while Kitchener allows 2.6 m. Waterloo also has no compact stall size and asks for a 3.7 m Type A accessible stall.
Yes. Book by June and we will paint in mid or late August, when most Northdale and campus-area lots are empty. We avoid move-in weekend because of the City's street closures around campus.
Yes. Northfield Drive and other industrial sites usually book Saturday and Sunday or a planned shutdown. We paint the truck court first and the warehouse floor second so the epoxy has the longest cure before Monday.
City of Waterloo municipal enforcement can, and so can a private parking enforcement officer licensed by the City and authorized by you. Either way, the fire route signs must meet By-law 2018-007 and the markings should be clearly visible.
Yes. Waterloo dropped minimum parking counts in some areas, but every stall you provide must still meet the Table 6B dimensions. We check widths at columns and walls before restriping any Uptown garage.
Free quote
Send us your Waterloo address or a satellite screenshot and we will reply with a written quote within one business day. Student properties should book by June to get an August slot before move-in.
