Parking lot striping since 2015
Kitchener Parking Lot Line Painting Pros restripes faded parking lots and paints fresh pavement markings for plazas, condo corporations, office parks and industrial yards across Kitchener. Stall lines, arrows, stop bars, loading zones and no-parking hatching are the core of what our crews do every week of the season.
Since 2015 we have finished more than 550 line painting jobs in Waterloo Region, most of them restripes on lots that reopen the next morning. That volume taught us which surfaces peel, which paints survive a plowing season and how to work around tenants who never want their lot closed.
We paint to the rules that apply here, not generic US guides. Stalls follow Section 5 of Kitchener's Zoning By-law, accessible stalls follow Ontario's AODA standard, and our paint choice follows the federal VOC limit that switches traffic paint to waterborne from May 1 to October 15.
What we paint
Parking lot restriping means repainting the existing markings on the same layout, so drivers see the lines your lot was designed with. A standard restripe job includes sweeping or blowing the painted areas, every stall line, arrows and stop bars, and a photo report when we finish.
Most owners book us for one of four kinds of markings, and many lots need all four in the same visit.
We paint single stall lines and double hairpin lines in 4 in (100 mm) widths, on 90 degree and angled rows. Compact stalls can make up no more than 10% of required parking in Kitchener and must be marked as compact.
Directional arrows, one-way aisle markings, stop bars at exits and drive-thru lanes keep traffic moving the way the lot was designed. Arrows and text come from our parking lot stencils and custom markings range.
Barrier-free stalls, fire routes and EV stalls each have their own rules, so they have their own pages. We paint them in the same visit as the restripe through our AODA accessible parking stall painting and fire route painting services.
Loading zone boxes, hatched no-parking areas beside entrances and painted curbs stop drivers from parking where trucks and pedestrians need room. Larger chevron and hazard areas are covered by our hazard and warning markings service.
Time to repaint?

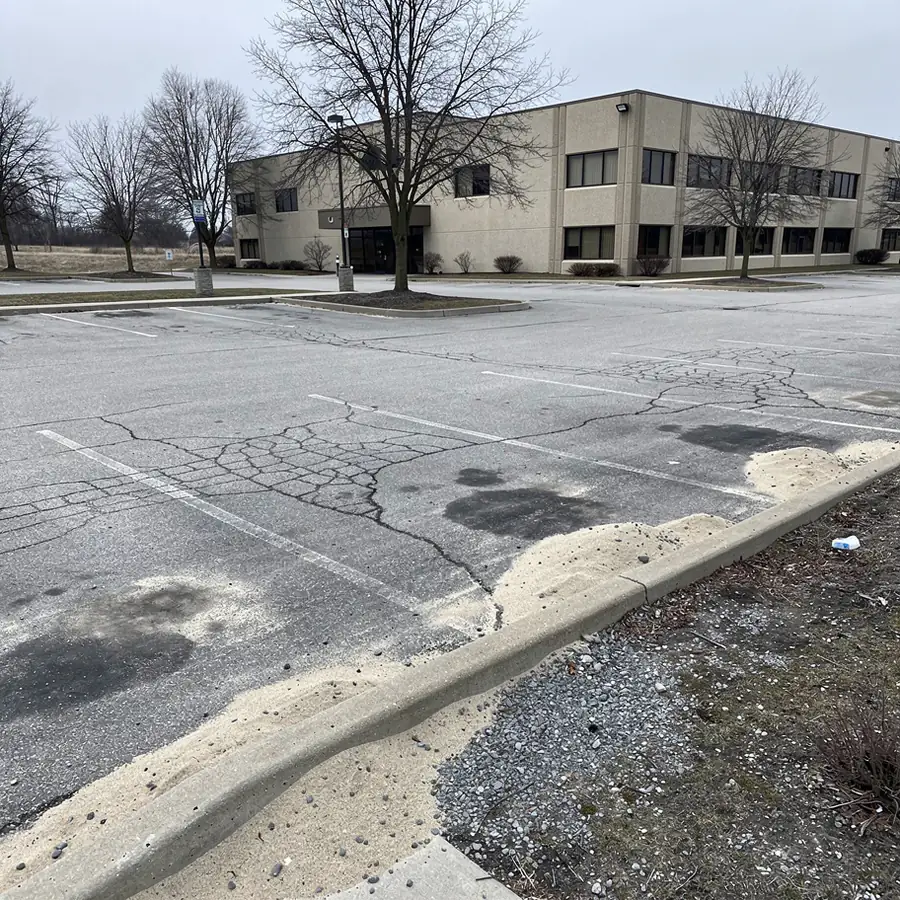

Your lot is due for restriping when drivers can no longer tell where one stall ends and the next begins. In Waterloo Region that usually shows up in April, after the plows and road salt have done their work.
Walk the lot on a sunny morning and check for these signs:
That last sign carries real cost. Kitchener's Accessible Parking By-law sets fines of up to $5,000, and a faded aisle invites people to park in it.
Restripe or re-layout
Choose a restripe when the current layout works and the lines are simply worn. Choose a new layout when the lot was repaved, the lines no longer match how the property is used, or you want more stalls out of the same asphalt.
A new layout costs roughly double a restripe because every line has to be measured and chalked before we spray. Our new parking lot layout and design service covers that work in detail.
| Restripe | New layout or re-layout | |
|---|---|---|
| When it fits | Lines are faded but the layout is right | Fresh asphalt, change of use, lost capacity, poor traffic flow |
| Prep | Sweep or blow the painted areas | Full sweep, plus removal of any old lines that conflict |
| Measuring | We trace the existing lines | Measured layout, chalk lines snapped to by-law stall sizes |
| Typical time | One evening for a 40 to 60 stall plaza | Longer, because layout takes as long as painting |
| Typical price | $9 to $15 per standard stall | $18 to $30 per stall |
| By-law impact | Keeps the existing approved layout | Moving or resizing stalls brings Section 5 rules into play |
Materials
Most Ontario parking lots are painted with waterborne acrylic traffic paint, because federal rules require it for half the year. Solvent paint, thermoplastic and glass beads each have a place, and the right mix depends on the season and how hard each marking is driven over.
The table compares the four options we use most, followed by when we pick each one.
Waterborne acrylic is our standard paint, for example Sherwin-Williams SetFast waterborne traffic marking paint. Canada caps traffic marking coatings at 150 g/L of VOCs from May 1 to October 15, and waterborne paint is how a contractor meets that limit.
It dries to the touch in 10 to 15 minutes on a summer day. Its weak point is thin film, so we spray it at 15 mils wet.
Outside the summer window, the federal limit rises to 450 g/L, which allows solvent-based alkyd and chlorinated rubber traffic paints. They bite into cool asphalt better in April and late October, when waterborne paint is slow to cure.
The guide to traffic paint types and Canada's VOC rules explains the dates and labelling in full.
Preformed thermoplastic is a hard plastic marking that we heat onto the asphalt with a propane torch. It lasts 3 to 6 years against 1 to 2 for paint, which makes it the better buy for crosswalks, stop bars and drive-thru arrows that every car crosses.
Type 1 glass beads dropped into wet paint reflect headlights back to the driver, so lines stay visible at night and in rain. We add them on request, usually at entrances, fire routes and poorly lit back lots.
| Option | Typical life on a busy lot | Ready for traffic | Relative cost | Best use |
|---|---|---|---|---|
| Waterborne acrylic paint | 12 to 24 months | 30 to 60 minutes in summer | Lowest | Stall lines and most markings, May to October |
| Solvent-based alkyd paint | Similar to waterborne | Longer in cool weather | Low | Early spring and late fall, outside the VOC window |
| Preformed thermoplastic | 3 to 6 years | Minutes after it cools | Highest upfront | Crosswalks, stop bars, arrows, drive-thru lanes |
| Glass beads (added to paint) | Adds night visibility | Same as the paint | Small add-on | Entrances, fire routes, dim lots |
The federal rule is published on Environment and Climate Change Canada's traffic marking coatings fact sheet.
Our process
A restripe follows four steps, and a 40 to 60 stall plaza goes from first cone to reopened lot in about 3 to 4 hours. Larger lots follow the same sequence one section at a time.
Send a satellite screenshot or site plan and we count stalls, arrows and linear footage, then send a written quote within 1 business day. If the old lines are too faint to read or the surface looks rough, we walk the lot that week.
We power blow or sweep every line path, treat oil spots and check that the asphalt is dry. Sand and grit under the paint are the top cause of peeling, so this step is never skipped.
We follow your existing lines or snap fresh chalk lines, then spray with a Graco LineLazer airless striper. Every coat goes on at 15 mils wet, about 7 to 8 mils dry, which is roughly 300 to 330 linear feet of 4 in line per US gallon.
Cones stay up until the lines are drivable, 30 to 60 minutes in summer and up to 2 hours when it is cool or humid. You get before and after photos by email the same day.
Lifespan
Waterborne parking lot lines last 12 to 24 months in Waterloo Region. Busy retail plazas, drive-thrus and entrances usually need a restripe every spring, while quiet condo and office lots can go 18 to 24 months.
Winter is what shortens that life. Plow blades scrape paint off the high points, and road salt and sand grind away the rest.
Our guide to how often parking lot lines should be repainted breaks this down by property type. Owners who want the same spring slot every year can join our annual restripe maintenance plan.
Pricing
Most Kitchener parking lot restripes cost $9 to $15 per standard stall before HST, with a $450 minimum for small lots and touch-ups. A typical 40 to 60 stall plaza with arrows lands between $650 and $1,200.
The final number comes from six factors, and we price each one on the written quote.
See every rate in one place on our parking lot line painting price list, including accessible stalls, crosswalks and hatching.
Common failures
Most of the restripes we redo failed for one of six reasons, and none of them is the paint brand. Each is easy to avoid if the crew knows to look for it.
Paint bonds to the loose grit instead of the asphalt, then peels off in strips within weeks.
Morning dew or a passing shower traps water under the film, and waterborne paint lifts as it dries.
Lines sprayed well under 15 mils wet look fine on day one and fade to grey by mid-summer.
New asphalt needs about 30 days for its oils to cure, or the final lines discolour and soften.
A crew that misses the old line by a few centimetres leaves two lines, and drivers pick the wrong one.
Stalls squeezed under Kitchener's 2.6 m by 5.5 m minimum, or access aisles painted without diagonal stripes, fail the by-law.
FAQ
These are the questions owners and property managers ask most before booking a parking lot restripe.
A small plaza of 40 to 60 stalls takes one evening, about 3 to 4 hours. A 150 stall lot takes one night or two phased evenings, and a lot of 300 or more stalls takes two to three nights painted section by section.
Yes. We split the lot into sections with cones and caution tape, paint one, reopen it once the lines are drivable and move to the next, so tenants and customers always have somewhere to park.
No. We paint when the air and pavement are 10 C and rising, the surface is dry and no rain is forecast for at least 4 hours afterwards. Outdoor work runs roughly May to October, while underground garages can be done year-round.
Yes. Small lots, a few faded arrows or one accessible stall are welcome, with a $450 minimum charge before HST.
Neither colour is required for standard stalls on private lots in Kitchener. White reads best on dark new asphalt, yellow stands out better on older grey asphalt and concrete, and we match whatever your layout already uses unless you ask to change.
Waterborne lines are dry to the touch in 10 to 15 minutes and drivable in 30 to 60 minutes on a summer day. Cool or humid evenings can stretch that to about 2 hours, and our cones stay up until then.
Free quote
Send us your address or a satellite screenshot of the lot, and we will reply with a written restripe quote within 1 business day. Spring evenings book up first, so April requests get the earliest slots.
