Crosswalks and school lots
Kitchener Parking Lot Line Painting Pros paints crosswalks, pedestrian walkways and school parking lot markings on private property across Waterloo Region. We mark school board sites, college and university campuses, plazas, hospitals and private roads where people on foot cross the path of cars and buses.
Facility managers at schools, campus grounds staff and plaza owners hire us to make crossings obvious to drivers and to sort out chaotic drop-off loops. Since 2015 we have completed more than 550 line painting jobs, and school work fills a large part of our calendar every July and August.
We paint on private property only. Crosswalks on city and regional streets belong to the road authority, and we explain below where that line sits so you know which crossings you can book with us.
Our services
We paint three kinds of pedestrian markings: crosswalks across drive aisles and private roads, the lane and stencil markings that organize a school lot, and walkways that lead people from parked cars to the front door.

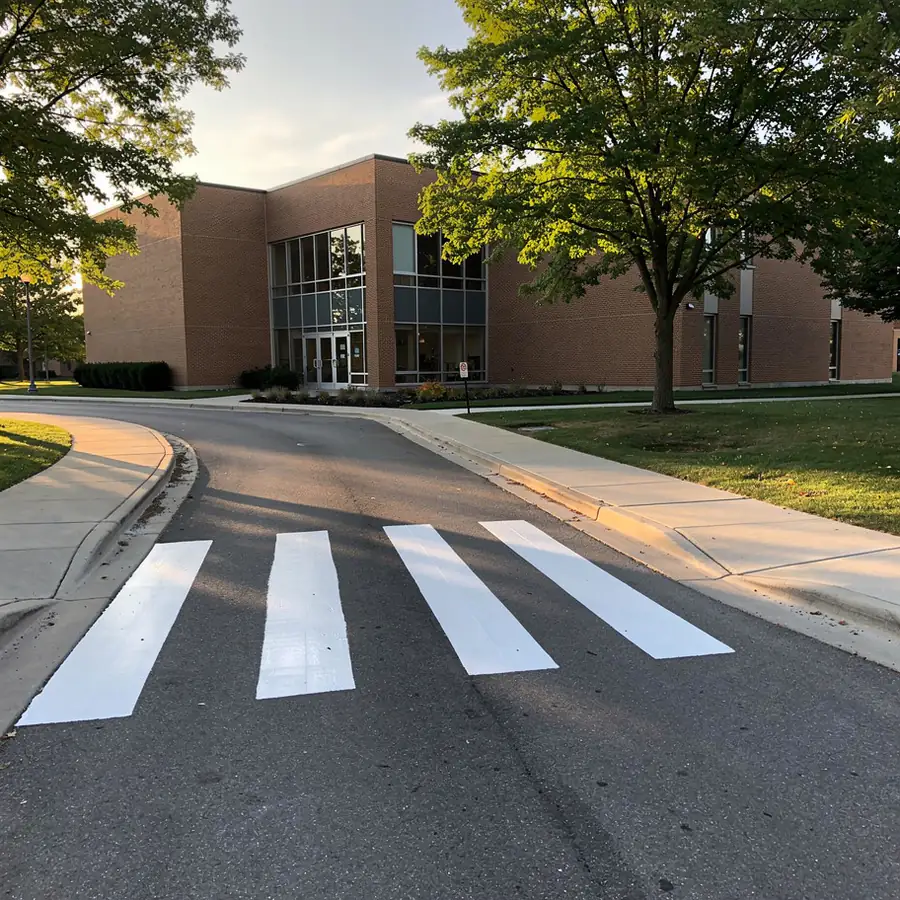

Ladder and transverse line crosswalks across plaza drive aisles, campus roads, hospital entrances and condo driveways.

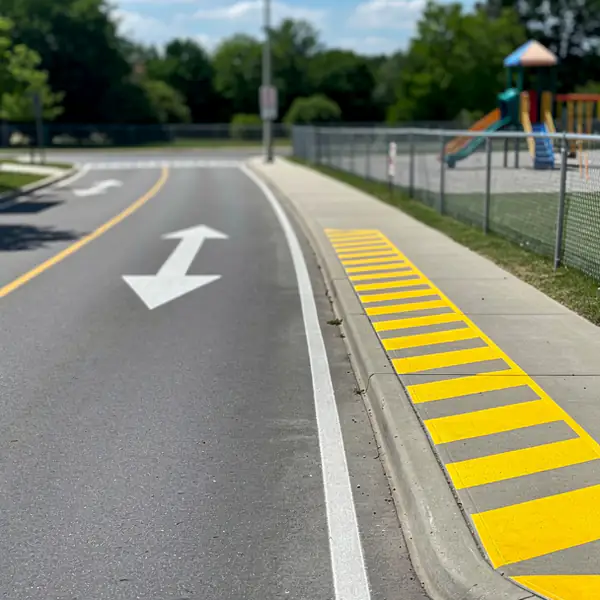

Bus loops, kiss-and-ride lanes, staff parking, SCHOOL and SLOW stencils and no-stopping hatching.
Painted walkways from parking rows to entrances, so people stop walking down the middle of the drive aisle.
Who paints what
We paint crosswalks and school markings on private property, and public roads are marked only by the road authority. A crosswalk on a school board's own driveway is ours to paint; the crossing on the street out front is not.
On public roads, the City of Kitchener looks after local streets and the Region of Waterloo looks after regional roads. Their crossings, pedestrian crossovers and school zone markings follow the Highway Traffic Act and the Ontario Traffic Manual, mainly Book 11 for pavement markings and Book 15 for pedestrian crossings, and use materials to the OPSS.PROV 710 pavement marking specification.
If a crossing on a public street near your school feels unsafe, the request goes to the city or the region, not to a contractor. We are happy to tidy the private side so the two connect cleanly.
Crosswalk styles
Ladder crosswalks are the most visible style, transverse line crosswalks are the cheapest, and painted walkways solve a different problem: guiding people along the lot rather than across it. The right choice depends on how much traffic crosses and how fast cars move.

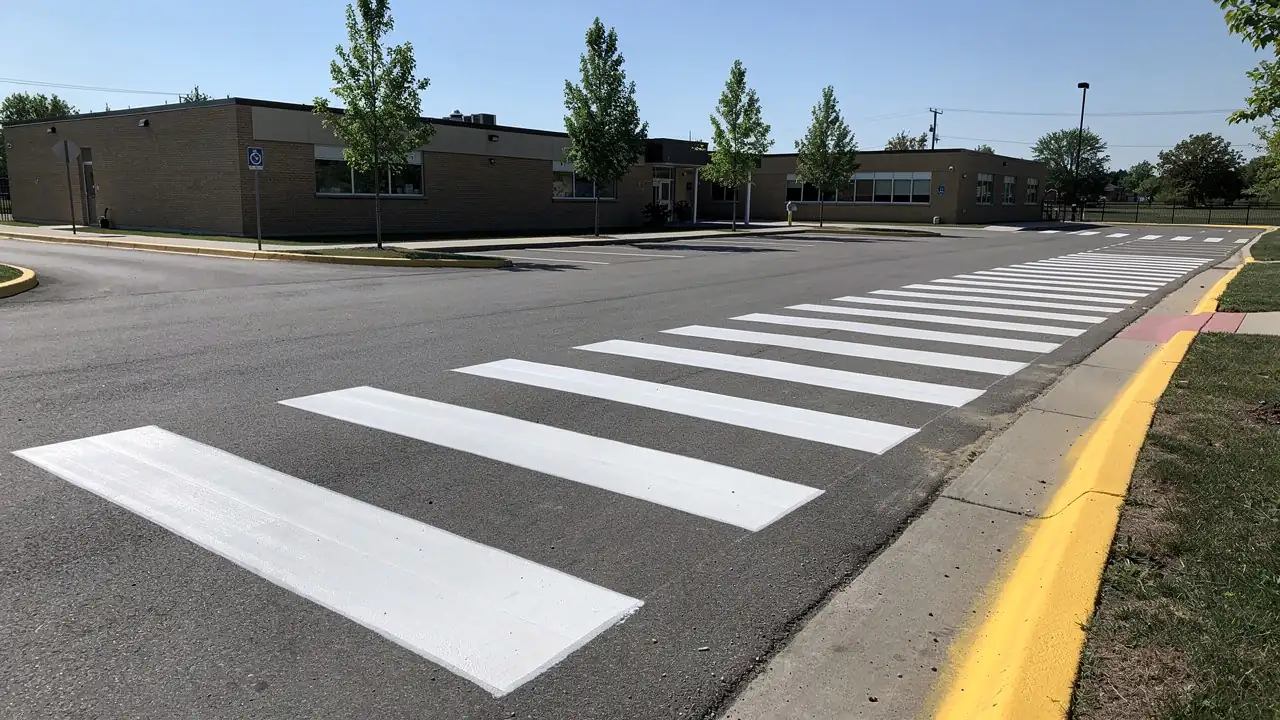

A ladder crosswalk is a row of wide bars running parallel to traffic, and drivers see it from much farther back than two thin lines. We paint bars 300 to 600 mm (12 to 24 in) wide with gaps that line up with the tire path, so tires roll between the bars and they last longer.
It uses more paint, so it costs more, but it is the style we recommend at school loops and any crossing used by children.
A transverse crosswalk is two parallel solid lines marking the edges of the crossing. It costs the least and suits quiet drive aisles where cars already move slowly.
It fades into the background on busy lots, so we usually suggest upgrading it to a ladder where a school or bus stop is close by.
A painted walkway runs along the lot, from a row of stalls or the accessible parking area to the main entrance. Edge lines with hatching or a solid fill tell drivers to expect people there, and walking figure stencils repeat the message.
Where the walkway starts at accessible stalls, we tie it into the access aisle laid out by our AODA accessible parking stall service.
| Style | Visibility | Paint use | Best for |
|---|---|---|---|
| Ladder (continental) | Highest, reads from far back | High, bars cover much of the crossing | School loops, busy plaza entrances, campus roads |
| Transverse lines | Moderate, two thin lines | Low | Quiet drive aisles, low-speed private roads |
| Pedestrian walkway | Moderate, long and continuous | Medium | Paths from parking rows to the front door |
Materials
Thermoplastic lasts 3 to 6 years on a busy crossing, while waterborne paint lasts 1 to 2. Paint costs far less upfront, so the choice comes down to how hard the crossing is used and how often you want us back.
Preformed thermoplastic arrives as cut bars that we heat into the asphalt with a propane torch until they bond. It is thicker than paint, so it shrugs off plow blades and constant foot traffic better than any coating.
| Factor | Waterborne paint | Preformed thermoplastic |
|---|---|---|
| Typical life on a busy crossing | 1 to 2 years | 3 to 6 years |
| Ladder crosswalk price | $250 to $600 each | $900 to $2,000 each |
| Ready for traffic | 30 to 60 minutes in summer | Shortly after it cools |
| Best fit | Low-speed lots, yearly restripe programs | School loops, hospital entrances, high-volume plazas |
Many schools mix the two: thermoplastic at the main bus loop crossing and paint everywhere else. Paint brands and seasonal VOC rules are explained in our guide to traffic paint types and VOC rules.
Timing
Schools get their crosswalks and lot markings painted in July and August, when buildings are empty and buses are parked. Those summer weeks book up early, so we recommend booking before June.
If a crossing cannot wait for summer, we can paint on PA days or weekends, phasing the lot so custodial and office staff can still park. College and university campuses usually prefer the weeks between exams and fall move-in.
School boards ask for vendor paperwork before any work starts. We send our WSIB clearance certificate and a certificate of insurance naming the board, and complete the board's supplier forms.
Our process
A painted ladder crosswalk takes one visit, and the crossing reopens 30 to 60 minutes after the last bar on a summer day. Crisp bar edges come from careful layout, not from the sprayer.
We measure from curb to curb and set the crosswalk width to match the sidewalks it connects, then place the stop bars ahead of it.
The crossing is swept and blown clean, and we snap chalk lines for the outside edges and the start of every bar.
For ladder bars we mask the edges so each bar ends square, which a sprayer alone cannot do on a 600 mm wide bar.
Paint goes down at 15 mils wet, with glass beads on request. Thermoplastic bars are laid out and heated with a propane torch until they bond.
Cones stay up until the crossing is drivable, then come off. You get before and after photos the same day.
Pricing
A painted ladder crosswalk costs $250 to $600 each before HST, and the same crossing in thermoplastic costs $900 to $2,000. Total cost depends on the number of crossings, their length, the style, how many stencils you add and whether any old markings need grinding off first.
A school lot usually combines several crossings, stencils and lane lines, so we price every item separately on one quote. Our line painting price guide lists the full rate card.
Why us
Schools and campuses choose us because we work their calendar, not ours. Summer slots are reserved in spring, and the paperwork is ready before the board asks.
Book by spring and your July or August date is held, with crossings, stencils and playground work done in the same visit.
WSIB clearance, insurance certificates naming the board and completed supplier forms, usually sent the same day.
The same crew can paint the bus loop, the staff lot and the hopscotch through our playground line painting service.
We paint campus lots near the university area on our Waterloo line painting page and around the Stone Road area on our Guelph line painting page.
FAQ
Answers to the crosswalk questions school facility managers and property owners ask us most.
No, crosswalks on public streets are painted only by or for the road authority. In Kitchener that means the City for local streets and the Region of Waterloo for regional roads, so contact them about a public crossing and book us for the crossings on your own property.
Schools should book in spring, ideally before June, for July and August painting. Outdoor paint needs air and pavement at 10 C and rising, so summer is also when the lines cure best.
A parking lot crosswalk should be at least as wide as the sidewalks it connects, and never narrower than the 1.5 m clear width Ontario's accessibility standard sets for new exterior paths of travel. Ladder bars are usually 300 to 600 mm (12 to 24 in) wide.
A painted school crosswalk usually needs repainting every year, because plows and bus tires wear the bars over winter. Thermoplastic crossings last 3 to 6 years; our guide to how often to repaint parking lot lines covers the rest of the lot.
Free quote
Send a site plan or satellite screenshot with your crossings and drop-off areas marked, and tell us when the building is empty. We reply with an itemized quote within one business day and hold your summer date.
