Cambridge line painting
Kitchener Parking Lot Line Painting Pros paints parking lots, truck courts and warehouse floors across Cambridge, from the plazas on Hespeler Road to the tight lots behind downtown Galt's stone buildings. We have been painting lines in Waterloo Region since 2015 and have more than 550 finished jobs to our name.
Cambridge is really three towns, Galt, Preston and Hespeler, joined into one city in 1973, and each one has a different kind of parking lot. Galt has small, odd-shaped lots in a heritage district, Hespeler Road has the region's busiest retail strip, and the Highway 401 corridor is lined with distribution and manufacturing yards.
Cambridge also measures stalls differently from its neighbours. Commercial and industrial lots still fall under the older Zoning By-law 150-85, which calls for a 2.9 m wide stall, so we check every re-layout against Cambridge's own table rather than Kitchener's.
What we paint
Cambridge work splits between retail restripes on Hespeler Road and Franklin Boulevard and industrial jobs near the 401. Those two groups drive most of the services we book in the city.

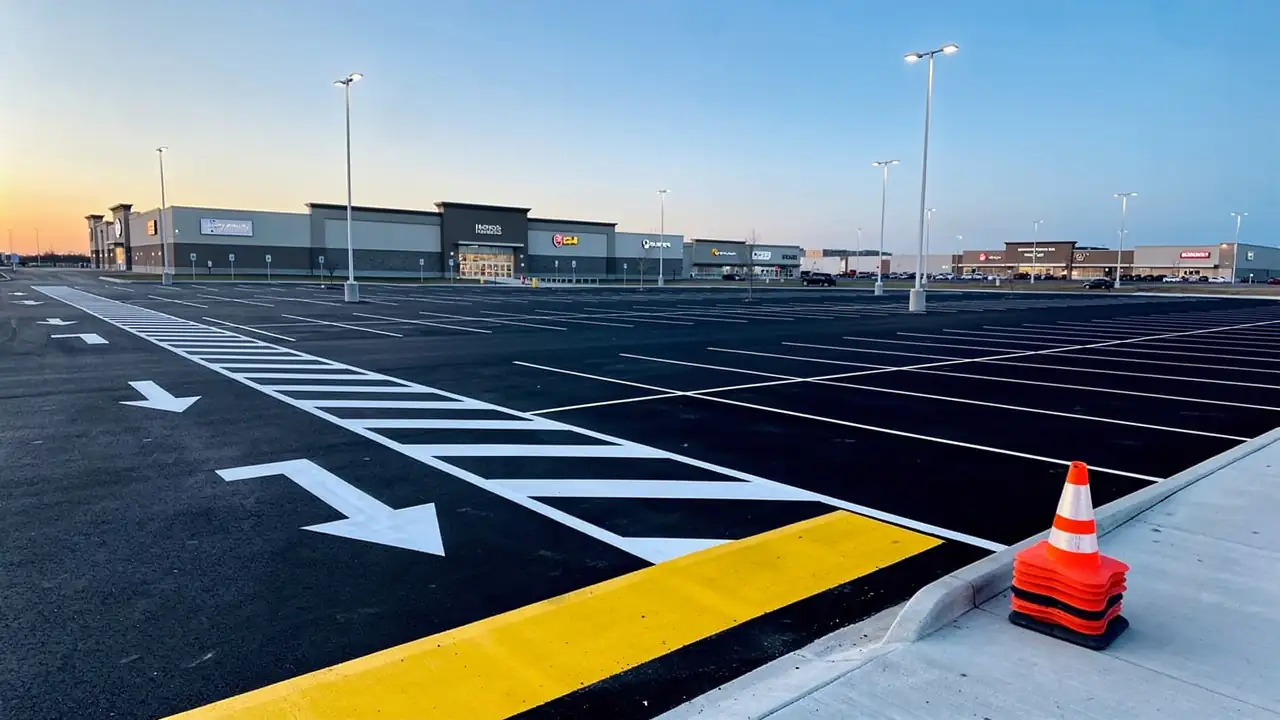

Our parking lot line painting and restriping service handles the large retail lots along Hespeler Road and Pinebush Road. We restripe overnight in sections so anchor stores and late-night restaurants keep their parking.
Lots behind older buildings were rarely laid out to today's rules. Our new parking lot layout and re-layout service measures the space, applies Cambridge's stall and aisle table and finds the best stall count it allows.
Distribution buildings near the 401 need dock hatching, trailer stalls and forklift aisles. Our warehouse floor line painting uses two-part epoxy indoors, applied over a weekend or a planned shutdown.

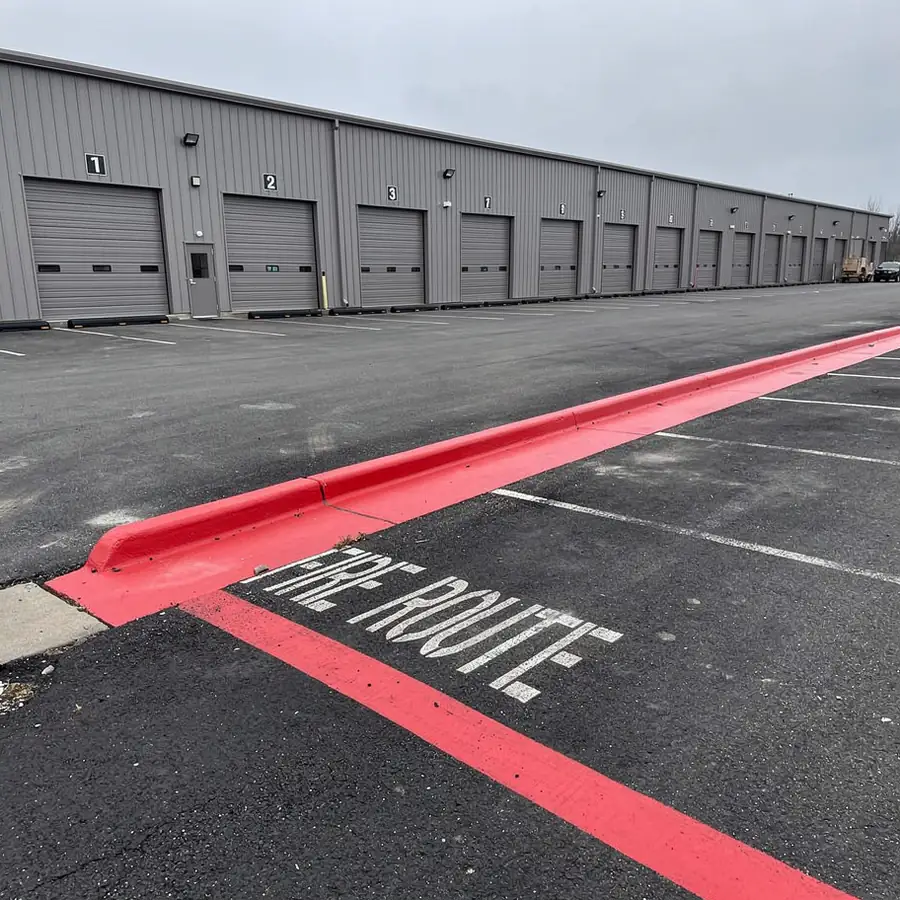

Multi-tenant industrial buildings on Boxwood Drive and Bishop Street often share one fire access route. Our fire route marking service paints the curb and lane lines and stencils to match the route on your approved site plan.
Quick-service restaurants along Hespeler Road also book drive-thru lane arrows, order-point stop bars and pickup stall lettering through our parking lot stencils and custom markings. For drive-thru lanes we often suggest thermoplastic, which lasts 3 to 6 years against the 1 to 2 years of paint.
By-laws
Two zoning by-laws now apply in Cambridge, and which one governs your lot depends on its use. Residential zones moved to the new Zoning By-law 26-007 on February 3, 2026, while commercial and industrial lots still follow Zoning By-law 150-85.
The older by-law is the one most plazas and industrial sites work to. Its Section 2.2.3 sets a 2.9 m stall width at every angle, wider than Waterloo's 2.8 m or Kitchener's parking stall dimensions at 2.6 m.
| Layout | By-law 150-85 (commercial, industrial) | By-law 26-007 (residential zones) |
|---|---|---|
| 90 degree stall | 2.9 m by 5.5 m, 6.0 m aisle | 2.75 m by 5.5 m |
| 60 degree stall | 2.9 m by 5.5 m, 5.0 m aisle | 2.9 m by 6.0 m (angled) |
| 45 degree stall | 2.9 m by 5.5 m, 4.0 m aisle | 2.9 m by 6.0 m (angled) |
| Parallel stall | 2.9 m by 6.5 m, 5.0 m aisle | 6.5 m long |
| Drive aisle | 6.0 m access driveway, 4 m for 10 or fewer cars or one way | 6.0 m two-way, 4.0 m one-way |
| Accessible stalls | Not set in this by-law; AODA applies | Type A 3.4 m, Type B 2.4 m, 1.5 m aisle |
| Visitor stalls | Clearly defined and identified | 0.25 per unit for apartments, clearly marked |
Two details matter on residential jobs. Lots that legally existed before February 3, 2026 are exempt from the new stall sizes, and new apartment buildings with more than 10 required spaces must design 20% of them as EV stalls.
Neither by-law has a compact or small-car stall, which is a key difference from Kitchener. Accessible stalls on commercial lots follow the AODA Design of Public Spaces standard, covered in our AODA parking requirements guide.
Enforcement
Cambridge's property standards rules reach into the parking lot itself. The Property Standards By-law 26-021 says every parking space and access aisle must be maintained in good repair, so faded stall lines can become a compliance issue, not just a looks issue.
The Lot Maintenance By-law 26-022 also requires owners to sign every fire access route and keep fire routes, accessible spaces and access aisles unobstructed.
Getting there
Most Cambridge sites are 20 to 25 minutes from our shop. We take the Conestoga Parkway to Highway 8, then the 401 to the Hespeler Road industrial area, and continue south on Hespeler Road for downtown Galt.
Hespeler Road traffic is heavy from late afternoon into the evening, so plaza crews usually leave the shop after 9:00pm and start painting once stores close. Industrial jobs near the 401 start early Saturday morning.
Typical jobs
Most Cambridge jobs fit one of four patterns. The table shows the usual scope and how long each takes on site, so you can plan tenant notices and closures.
| Job | Typical scope | Time on site |
|---|---|---|
| Hespeler Road plaza, 60 stalls | Single stall lines, eight arrows, two accessible stalls, stop bars | One evening, about 3 to 4 hours |
| Power centre near the 401, 300+ stalls | Full restripe, drive-thru lanes, fire route, crosswalks | Two to three nights, phased by section |
| Downtown Galt lot behind a heritage building | Re-layout with 45 degree stalls and a one-way aisle | Layout visit, then one evening |
| Boxwood Drive distribution unit | Trailer stalls, dock hatching, epoxy forklift lanes inside | One weekend |
Plazas with several tenants usually ask us for printable notices and a phasing plan before they book. We send both with the quote, along with our WSIB clearance and insurance certificate.
FAQ
These are the questions Cambridge property managers, plaza owners and plant managers ask us most.
Yes. A 40 to 60 stall plaza takes one evening of about 3 to 4 hours after close, and lines are drivable 30 to 60 minutes after the last pass. Larger power centres are phased over two or three nights.
Yes. We paint epoxy forklift lanes, walkways and racking zones for units on Boxwood Drive, Bishop Street North, Eagle Street and Pinebush Road. Indoor work runs year-round as long as the slab is above 10 C.
Often, yes. Cambridge has no compact stall size, but switching to 45 degree stalls with a 4.0 m one-way aisle can fit a narrow lot better than 90 degree parking with its 6.0 m aisle. Anything below the by-law minimum needs City approval first.
Commercial and industrial lots use Zoning By-law 150-85 and its 2.9 m stall. Residential zones moved to By-law 26-007 in February 2026, with a 2.75 m stall for new layouts, while existing lots keep their current sizes.
They can be. Property Standards By-law 26-021 requires parking spaces and access aisles to be kept in good repair, and accessible aisle hatching that has worn away is hard to defend.
Free quote
Send your Cambridge address, a site plan or a satellite screenshot and we will reply with a written quote within one business day. Hespeler Road plazas should book early, because spring evenings fill first.
